Network UPS Tools (as of v2.8.0-rc1)
Power Devices support
|
Two NUT websites
This version of the page reflects NUT release v2.8.0-rc1 with codebase commited 86af0b98c at 2022-04-01T02:02:27+02:00 Options, features and capabilities in current development (and future releases) are detailed on the main site and may differ from ones described here. |

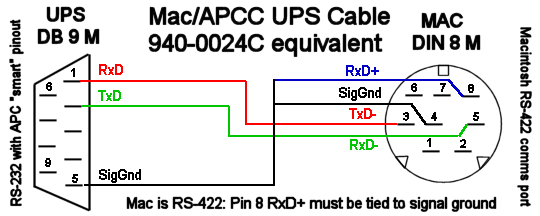

From D. Stimits
|
|

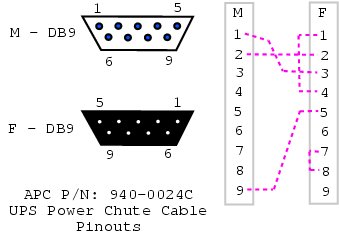

The original 940-0024C diagram was contributed by Steve Draper. |
Reported by Jonathan Laventhol
This cable is said to use the same wiring as 940-0024C clone.
From Miguel Howard
From "Daniel"

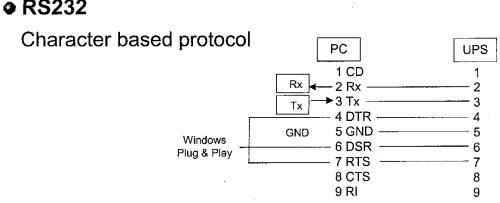

A straight-through RS-232 cable (with pins 2-7 connected through) should work with the following models:
F6C110-RKM-2U
F6C150-RKM-2U
F6C230-RKM-2U
F6C320-RKM-3U
Documents in this section are provided courtesy of Eaton.
The three first cables also applies to MGE UPS SYSTEMS and Eaton.

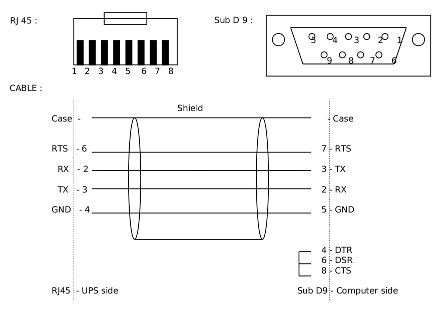

This is the standard serial cable, used on most units.

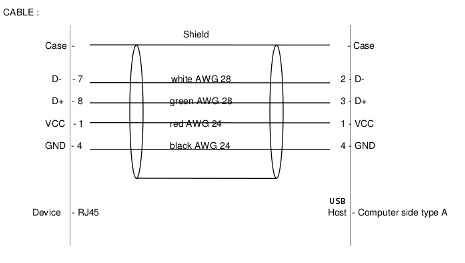

This cable is used on the more recent models, including Ellipse MAX, Protection Station, …
The following applies to the MGE 66102 NMC (Network Management Card), and possibly other models. The NMC connection is an 8P8C RJ45-style jack.
Signal |
PC |
NMC |
1,4,6 |
||
TxD |
2 |
3 |
RxD |
3 |
6 |
GND |
5 |
4 |
7,8 |
||
shield |
shield |
This cable is used also on the more recent models, including Ellipse MAX, Protection Station, …

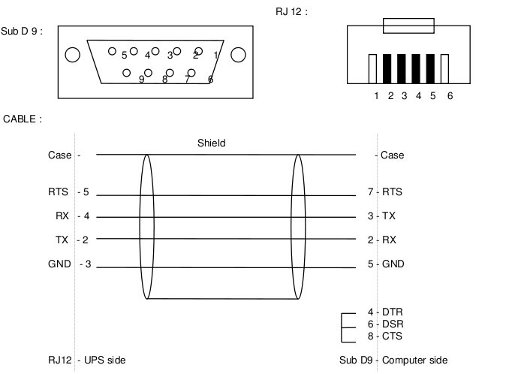

This cable is used on some older Ellipse models.
Just uses a normal serial cable, with pin 1-1 through to 9-9.
This cable can be used with the following models:
T700, T1000, T1500, T1500j, T700h, T1000h, T1500h, R1500, R1500j, R1500h, T2000, T2000j, T2400h, T2400h-NA, R3000 / R3000j, R3000h, R3000h-International, R3000h-NA, R6000h-NA, R6000i, R6000j.
UPS PC 9 pin connector1 --------- 3
2 --------- 2
4 -\
4 --------- 5 |
6 -/
6 --------- 7Contributed by Kjell Claesson and Arnaud Quette.
Many Best Power units (including the Patriot Pro II) have a female DB-9 socket with a non-standard pinout.
Signal |
PC |
UPS |
1,4,6 |
NC |
|
TxD |
2 |
2 |
RxD |
3 |
1 |
GND |
5 |
4 |
7,8 |
NC |
Sources:

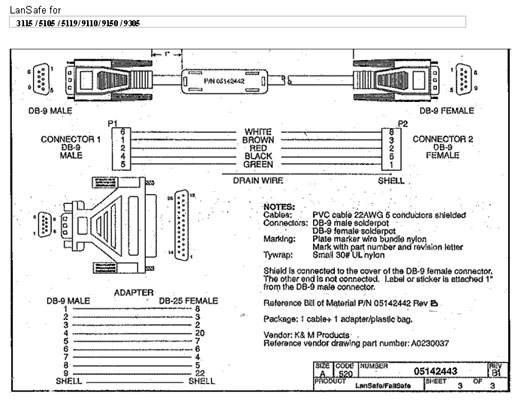

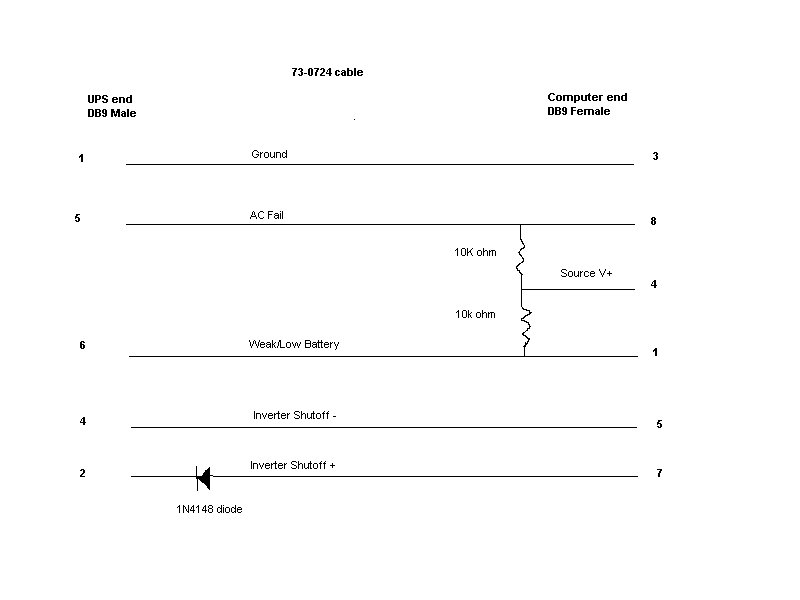

From Tripp-Lite, via Bryan Kolodziej
This cable (black 73-0844 cable) is used on various models, using the "Lan 2.2 interface" and the genericups driver (upstype=5).
