Documents in this section are provided courtesy of Eaton.
The three first cables also applies to MGE UPS SYSTEMS and Eaton.

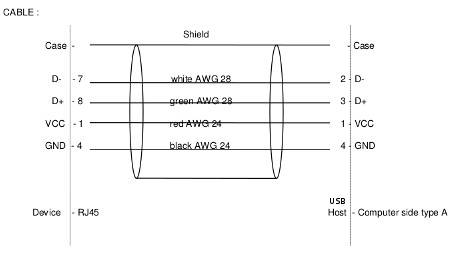

This cable is used on the more recent models, including Ellipse MAX, Protection Station, …

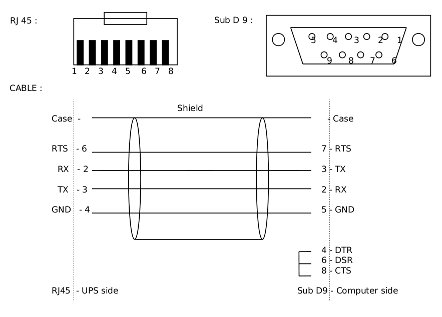

The following applies to the MGE 66102 NMC (Network Management Card), and possibly other models. The NMC connection is an 8P8C RJ45-style jack.
Signal | PC | NMC |
1,4,6 | ||
TxD | 2 | 3 |
RxD | 3 | 6 |
GND | 5 | 4 |
7,8 | ||
shield | shield |
This cable is used also on the more recent models, including Ellipse MAX, Protection Station, …
